MCP604I/SL Quad Op Amp Low Power Amplifier Microchip Integrated Circuit
Category:
Integrated Circuits IC
Price:
Negotiated
Payment Method:
T/T, Western Union,PAYPAL
Specifications
Description:
2.7 To 5.5V Quad Operational Amplifier IC
Details:
Op Amp Quad Low Power Amplifier R-R O/P 6V Automotive 14-Pin SOIC
Category:
Electronic Components-Integrated Circuits(IC)
Series:
Power MOSFET Drivers Integrated Circuits IC
Mounting Type:
Surface Mounting
Package:
SOP14
Base Part Number:
MCP604
Operating Ambient Temperature Range:
-40°C ~ 85°C (TA)
Family:
PMIC- Power Amplifier
High Light:
MCP604I/SL Quad Op Amp
,MCP604 low power op amp single supply
,MCP604I/SL op amp low power
Introduction

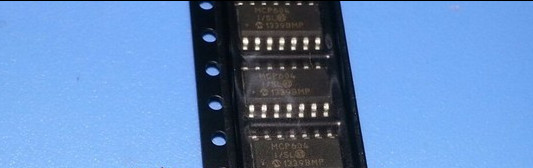

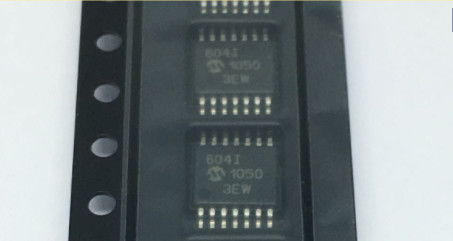

MCP604I/SL Microchip Integrated circuits IC Op Amp Quad Low Power Amplifier
This general purpose amplifier MCP604-I/SL OP amp from Microchip Technology is a simple circuit component used for signal amplification.
This op amp has a temperature range of -40 °C to 85 °C.
It has 4 channels per chip. This device utilizes CMOS technology. This device uses a single power supply.
MCP604I/SL Specification:
| Part Number | MCP604I/SL |
| EU RoHS | Compliant |
| ECCN (US) | EAR99 |
| Part Status | Active |
| HTS | 8542.33.00.01 |
| Automotive | Yes |
| PPAP | Yes |
| Type | Low Power Amplifier |
| Manufacturer Type | Low Power Amplifier |
| Number of Channels per Chip | 4 |
| Rail to Rail | Rail to Rail Output |
| Process Technology | CMOS |
| Output Type | CMOS |
| Maximum Input Offset Voltage (mV) | 2@5.5V |
| Minimum Single Supply Voltage (V) | 2.7 |
| Typical Single Supply Voltage (V) | 3|5 |
| Maximum Single Supply Voltage (V) | 6 |
| Maximum Input Offset Current (uA) | 0.000001(Typ)@5.5V |
| Typical Input Bias Current (uA) | 0.000001@5.5V |
| Maximum Input Bias Current (uA) | 0.00006@5.5V@85C |
| Maximum Quiescent Current (mA) | 1.3@5.5V |
| Typical Output Current (mA) | 30(Max) |
| Power Supply Type | Single |
| Typical Slew Rate (V/us) | 2.3@5.5V |
| Typical Input Noise Voltage Density (nV/rtHz) | 29@5.5V |
| Typical Voltage Gain (dB) | 115 |
| Typical Noninverting Input Current Noise Density (pA/rtHz) | 0.0006@5.5V |
| Minimum PSRR (dB) | 80 |
| Minimum CMRR (dB) | 75 |
| Minimum CMRR Range (dB) | 75 to 80 |
| Typical Gain Bandwidth Product (MHz) | 2.8 |
| Typical Settling Time (ns) | 4500 |
| Shut Down Support | No |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°C) | 85 |
| Supplier Temperature Grade | Industrial |
| Packaging | Tube/Reel |
| Pin Count | 14 |
| Standard Package Name | SOP |
| Supplier Package | SOIC N |
| Mounting | Surface Mount |
| Package Height | 1.25(Min) |
| Package Length | 8.65 |
| Package Width | 3.9 |
| PCB changed | 14 |
| Lead Shape | Gull-wing |
