16 Bit Texas Instruments MSP430 Microcontroller IC MSP430F6736AIPZR

Category:
Microcontroller IC
Price:
Negotiated
Payment Method:
T/T, Western Union
Specifications
Products Name:
Integrated Circuits(IC)
Details:
CPUXV2 Series Microcontroller IC 16-Bit 25MHz 128KB (128K X 8) FLASH 100-LQFP (14x14)
Category:
Electronic Components
IC Family:
CPUXV2 Series MSP430
Other Name:
TMS320F28335
Package:
100-LQFP (14x14)
Description:
IC MCU 16BIT 128KB FLASH 100LQFP
Base Part Number:
MSP430
Lead Free Status:
RoHS Compliant, PB Free, Lead Free
Related Parts:
MSP430F6736AIPZR MSP430F6736AIPZN MSP430F6736AIP
High Light:

Texas Instruments MSP430 Microcontroller IC

,

16 Bit Texas Instruments MSP430 Microcontroller

,

MSP430F6736AIPZR

Introduction

MSP430F6736AIPZR msp430 series Microcontroller IC Texas Instruments MCU Electronic componnets



CPUXV2 series Microcontroller IC 16-Bit 25MHz 128KB (128K x 8) FLASH 100-LQFP (14x14)



Description:

The Texas Instruments MSP430 family of ultra-low-power microcontrollers (MCUs) consist of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low-power modes is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that attribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 6 µs. The MSP430F13x, MSP430F14x, and MSP430F14x1 MCUs support two built-in 16-bit timers, a fast 12-bit ADC on the MSP430F13x and the MSP430F14x devices, one USART on the MSP430F13x devices or two USARTs on the MSP430F14x and MSP430F14x1 devices, and 48 I/O pins. The hardware multiplier enhances the performance and offers a broad code and hardware-compatible family solution.



Features:

• Industry-leading ultra-low power consumption – 5-Hz version: 0.54 µA with 1.8 V – 20-Hz versions: 1.6 µA with 3 V • 1.65-V to 5.5-V operating VCC range • Magnetic threshold options (maximum BOP): – 3.9 mT, highest sensitivity – 4.8 mT, high sensitivity – 9.5 mT, medium sensitivity – 63 mT, lowest sensitivity • Omnipolar and unipolar options • 20-Hz and 5-Hz sampling rate options • Open-drain and push-pull output options • SOT-23, X2SON and TO-92 package options • –40°C to +85°C operating temperature range



Applications:

Sensor Systems

Industrial Controls

Hand-Held Meters



IC MCU 16BIT 60KB FLASH 64LQFP Specifications:

Category
Integrated Circuits (ICs)

Embedded - Microcontroller IC
Mfr
Texas Instruments
Series
CPUXV2
Package
Tape & Reel (TR)
Part Status
Active
Core Processor
MSP430F
Core Size
16-Bit
Speed
8MHz
Connectivity
SPI, UART/USART
Peripherals
POR, PWM, WDT
Number of I/O
48
Program Memory Size
60KB (60K x 8 + 256B)
Program Memory Type
FLASH
Part Number MSP430F6736AIPZ
RAM Size
2K x 8
Voltage - Supply (Vcc/Vdd)
1.8V ~ 3.6V
Data Converters
A/D 8x12b
Oscillator Type
Internal
Operating Temperature
-40°C ~ 85°C (TA)
Mounting Type
Surface Mount
Package / Case
-LQFP
Supplier Device Package
100-LQFP (10x10)
Base Product Number
MSP430F6736


Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.31.0001







Features

1 • Low Supply Voltage Range, 1.8 V to 3.6 V • Ultra-Low Power Consumption: – Active Mode: 280 µA at 1 MHz, 2.2 V – Standby Mode: 1.6 µA – Off Mode (RAM Retention): 0.1 µA • Five Power-Saving Modes • Wakeup From Standby Mode in Less Than 6 µs • 16-Bit RISC Architecture, 125-ns Instruction Cycle Time • 12-Bit Analog-to-Digital Converter (ADC) With Internal Reference, Sample-and-Hold, and Autoscan Feature • 16-Bit Timer_B With Seven Capture/CompareWith-Shadow Registers • 16-Bit Timer_A With Three Capture/Compare Registers • On-Chip Comparator • Serial Onboard Programming, No External Programming Voltage Needed, Programmable Code Protection by Security Fuse.

Serial Communication Interface (USART), Functions as Asynchronous UART or Synchronous SPI Interface – Two USARTs (USART0, USART1) On MSP430F14x and MSP430F14x1 Devices – One USART (USART0) On MSP430F13x Devices • Family Members (Also See Device Comparison) – MSP430F133 – 8KB + 256 Bytes of Flash Memory, 256 Bytes of RAM – MSP430F135 – 16KB + 256 Bytes of Flash Memory, 512 Bytes of RAM – MSP430F147, MSP430F1471 – 32KB + 256 Bytes of Flash Memory, 1KB of RAM – MSP430F148, MSP430F1481 – 48KB + 256 Bytes of Flash Memory, 2KB of RAM – MSP430F149, MSP430F1491 – 60KB + 256 Bytes of Flash Memory, 2KB of RAM



Device Information :

MSP430F149IPM       LQFP (64)    10 mm × 10 mm
MSP430F149IPAG    TQFP (64)     10 mm × 10 mm
MSP430F1491IRTD    VQFN (64)     9 mm × 9 mm



For more information about related parts ,please feel free to email by ic@icschip.com



MSP430F149 MSP430F148 MSP430F147 MSP430F1491 MSP430F1481 MSP430F1471 MSP430F135 MSP430F133 MSP430 full series Microcontroller IC



MSP430F133IPAG TQFP PAG 64 160 M430F133
MSP430F133IPM LQFP PM 64 160 M430F133
MSP430F133IPMR LQFP PM 64 1000 M430F133
MSP430F133IRTDT VQFN RTD 64 250 M430F133
MSP430F135IPAG TQFP PAG 64 160 M430F135
MSP430F135IPM LQFP PM 64 160 M430F135
MSP430F135IPMR LQFP PM 64 1000 M430F135
MSP430F135IRTDR VQFN RTD 64 2500 M430F135
MSP430F135IRTDT VQFN RTD 64 250 M430F135
MSP430F1471IPM LQFP PM 64 160 M430F1471
MSP430F1471IPMR LQFP PM 64 1000 M430F1471
MSP430F1471IRTDT VQFN RTD 64 250 M430F1471
MSP430F147IPAG TQFP PAG 64 160 M430F147
MSP430F147IPM LQFP PM 64 160 M430F147
MSP430F147IPMR LQFP PM 64 1000 M430F147
MSP430F147IPMR-KAM LQFP PM 64 1000 M430F147
MSP430F147IPMRG4 LQFP PM 64 1000 M430F147
MSP430F147IRTDR VQFN RTD 64 2500 M430F147
MSP430F147IRTDT VQFN RTD 64 250 M430F147
MSP430F1481IPM LQFP PM 64 160 M430F1481
MSP430F1481IPMR LQFP PM 64 1000 M430F1481
MSP430F1481IRTDT VQFN RTD 64 250 M430F1481
MSP430F148IPAG TQFP PAG 64 160 M430F148
MSP430F148IPM LQFP PM 64 160 M430F148
MSP430F148IPMG4 LQFP PM 64 160 M430F148
MSP430F148IPMR LQFP PM 64 1000 M430F148
MSP430F148IRTDR VQFN RTD 64 2500 M430F148
MSP430F148IRTDT VQFN RTD 64 250 M430F148
MSP430F1491IPM LQFP PM 64 160 M430F1491
MSP430F1491IPMG4 LQFP PM 64 160 M430F1491
MSP430F1491IPMR LQFP PM 64 1000 M430F1491
MSP430F1491IRTDR VQFN RTD 64 2500 M430F1491
MSP430F1491IRTDT VQFN RTD 64 250 M430F1491
MSP430F149IPAG TQFP PAG 64 160 M430F149
MSP430F149IPAGR TQFP PAG 64 1500 M430F149
MSP430F149IPM LQFP PM 64 160 M430F149
MSP430F149IPMG4 LQFP PM 64 160 M430F149
MSP430F149IPMR LQFP PM 64 1000 M430F149
MSP430F149IPMRG4 LQFP PM 64 1000 M430F149
MSP430F149IRTDR VQFN RTD 64 2500 M430F149
MSP430F149IRTDRG4 VQFN RTD 64 2500 M430F149
MSP430F149IRTDT VQFN RTD 64 250 M430F149



Images

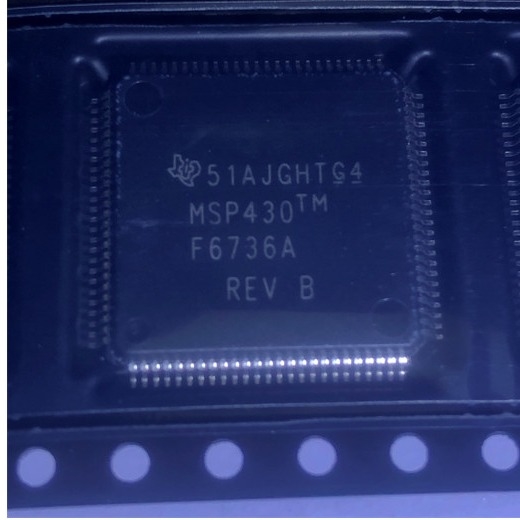

16 Bit Texas Instruments MSP430 Microcontroller IC MSP430F6736AIPZR16 Bit Texas Instruments MSP430 Microcontroller IC MSP430F6736AIPZR
